Liquid RheostatsOUR LIQUID RHEOSTATS ARE MADE IN THE USA!

We are proud to be one of the only manufacturers of electrolytic starters in the US, and have various designs based on the fluid volume and concentration needed to efficiently control the torque capacity required by your system. The system consists of three electrodes submerged in electrolytic solution, which is processed through a heat exchanger to ensure maximum heat dissipation. Electrode height displacement determines the resistive torque capacity. Height is regulated by a drive shaft, driven by a DC motor. The system is controlled locally or remotely by a PLC. Programming is customized for quick alarm and trip response due to rapid temperature increase, current spikes, or any other anomalies during operation. The user-friendly nature of our systems ensures smooth and efficient operation.



Custom tank sizes available upon request. Call today for options and pricing. 918-752-0309

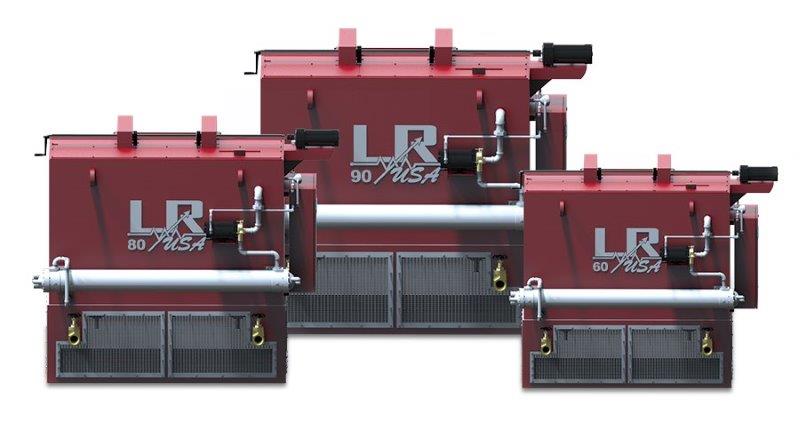

ModelTank LengthTank WidthTank HeightOverall HeightTank CapacityFluid Weight
LR 5076.035.7553.077.5550 gal4642 lbs
LR 6079.7535.7553.580.5640 gal5403 lbs
LR 8092.040.557.084.0895 gal7545 lbs
LR 9093.042.060.087.0988 gal8335 lbs
LR 10095.047.065.092.01226 gal10343 lbs
LR USA PLUS EDITION MODELS

All Plus Edition liquid rheostats include a stainless-steel tank. The low-conducting stainless steel tanks eliminate the potential for electrical arcing and are corrosion resistant, providing more reliability and increased longevity and durability for demanding applications.



LIQUID RHEOSTAT OPTIONAL ADDERS

Remote PLC Controls

Custom Paint Colors & Powder Coating

Service Maintenance Agreements

Extended Warranties (Service Maintenance Agreement Required for Eligibility)

Primary Motor Controls

Isolation Switches

Multilin 469 Motor Management Relays

Call for Custom Options and Pricing 918-752-0309
